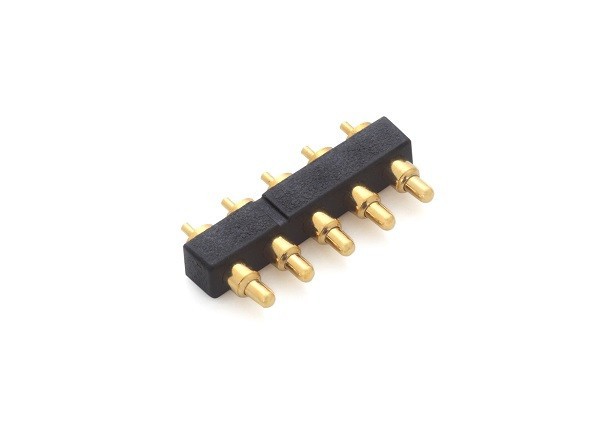

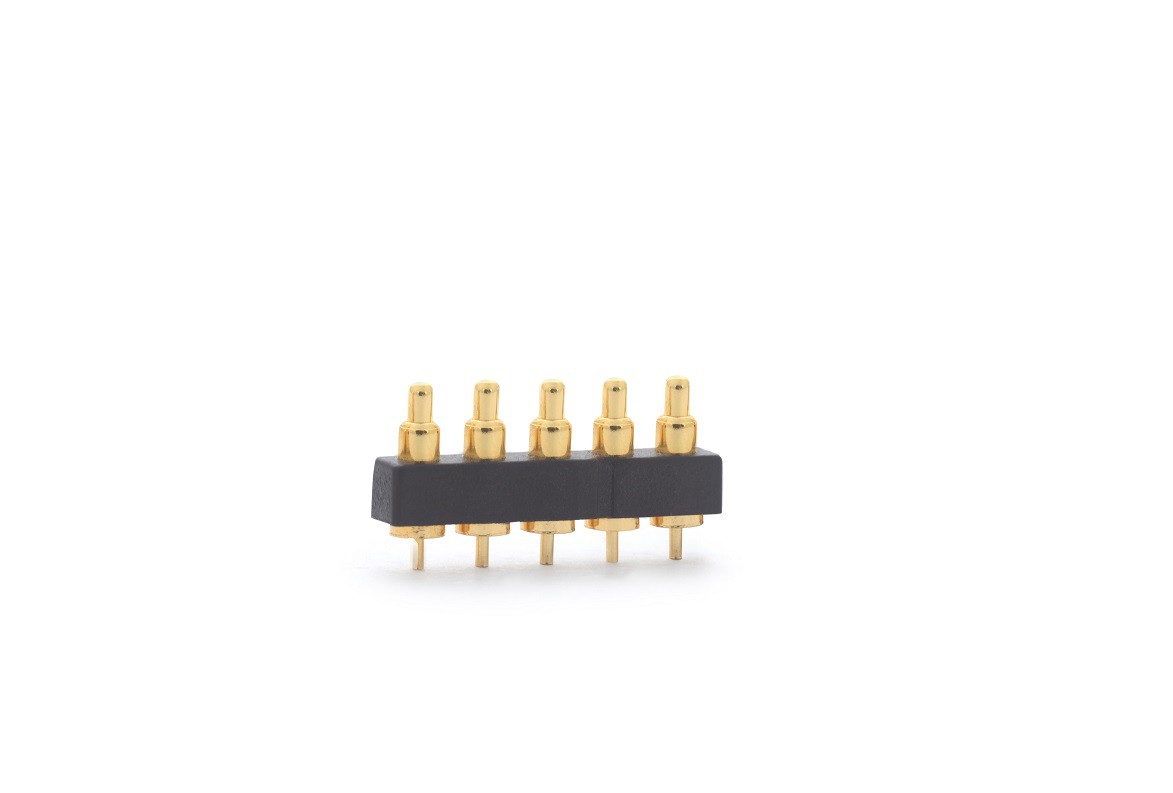

5 Pin Pogo Pin Adapter Connector
According to engineers' design programs, there are many different Pogo pin structures, dip Pogo pin connectors usually combine with PCB board.
We are a Pogo pin factory and we can do:
Pogo Pin
pogo pin socket
pogo pin pins
pogo pin power pin
Waterproof connection pogo pin
brass pogo pins
connector circular pin
pogo pin high-quality magnetic water connector
Application fields:
At present, our products have been successfully and widely used in product areas: smart wearable, TWS Bluetooth headsets, Bluetooth speakers, smart homes, smartphones, 5G communications, medical equipment, portable electronic products, etc.
Smart wearable TWS earbuds Smart Home 5G communications
Material of Pogo pin
Pogo pin Plunger：
Brass-plated Gold （C3604）. The thickness of the coating changes due to different use occasions. Generally, plating Nickel first 1.25~2.5um(Converted to 50~100µ ”), then plating Gold0.075~0.75um (Converted to 3~30µ ”)
Pogo pin Barrel：
Brass plated Gold （C3604）, The thickness of the coating changes due to different use occasions Generally, plating Nickel first 1.25~2.5um(Converted to 50~100µ ”), then plating Gold 0.075~0.75um (Converted to 3~30µ ”)
Pogo pin Spring：
SUS 304Or beryllium copper
Housing：
PA46, PA9T, of which PA4T and LCP are halogen-free materials
CAP： PA46, PA9T, of which PA4T and LCP are halogen-free materials

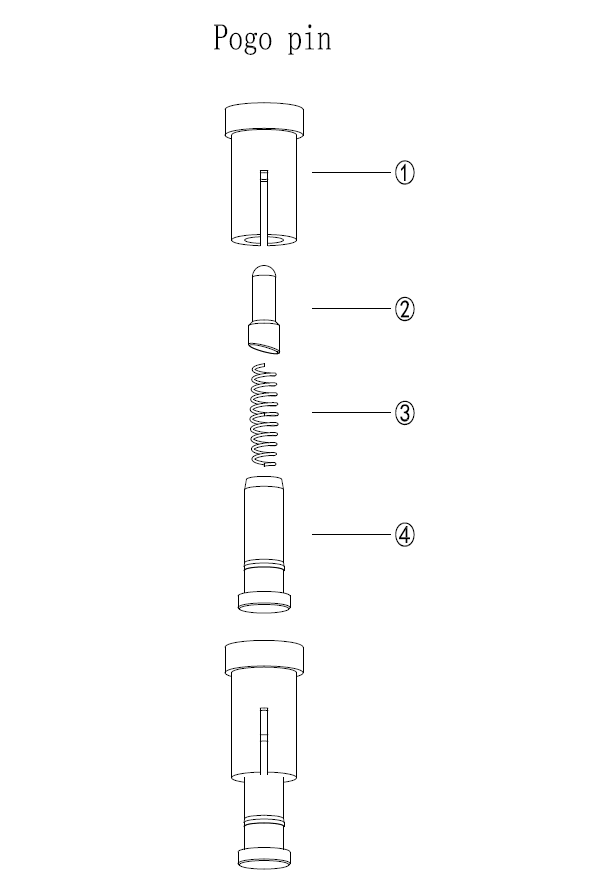

Product assembly method
Patent Certificates
We have applied for 22 patents, including 10 appearance patents and 2 utility models as now completed the "National High-tech Enterprise" certification, passed the ISO9001, ISO14001 quality management system, and obtained relevant certificates
