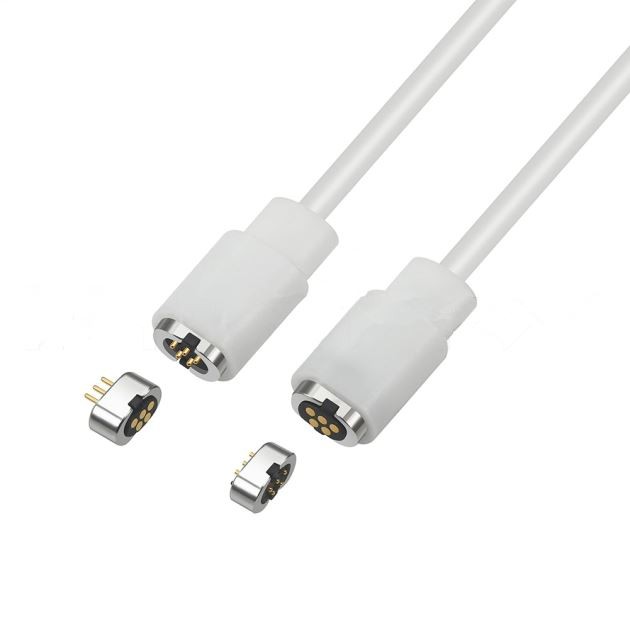

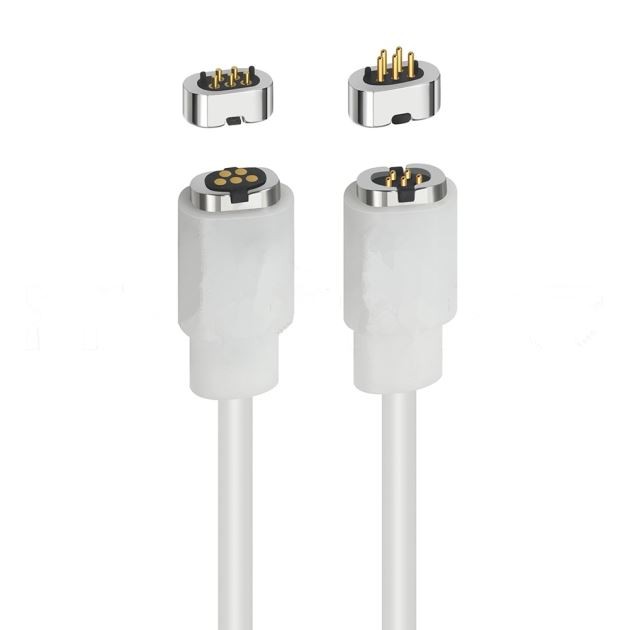

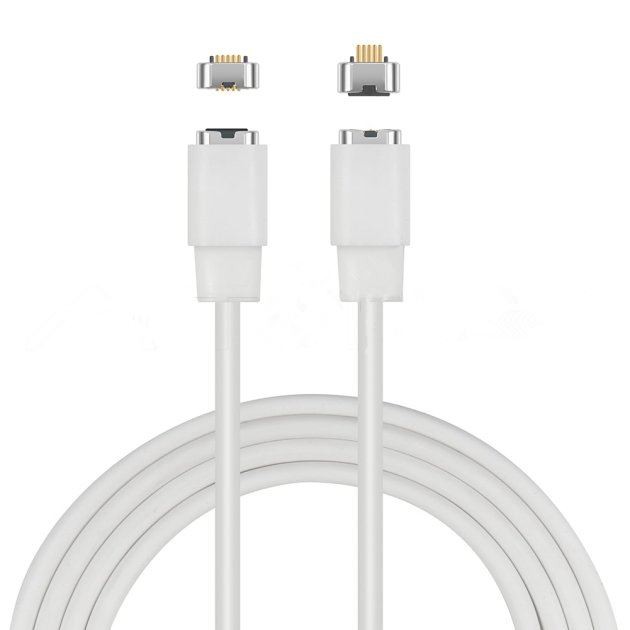

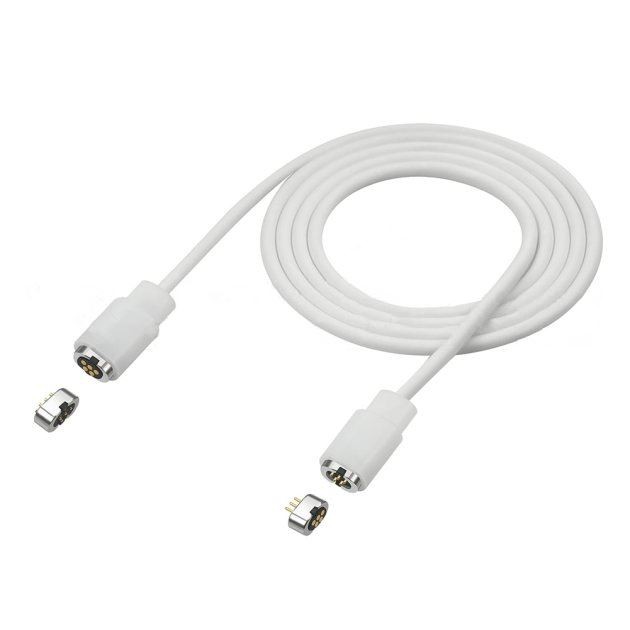

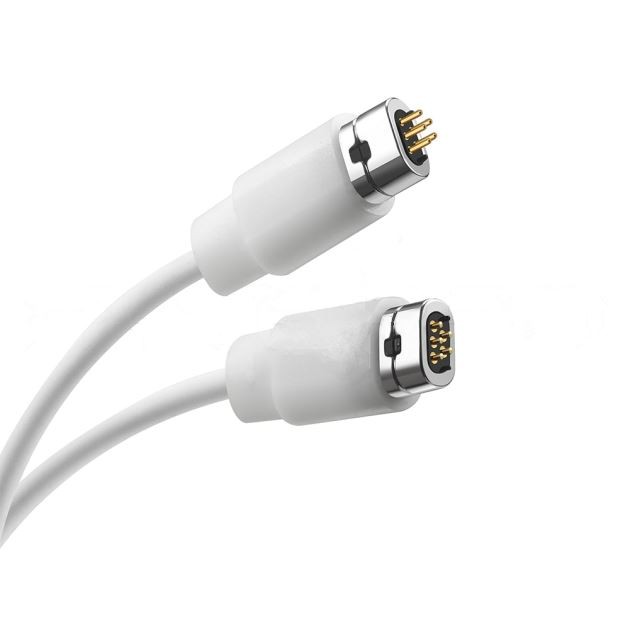

5 Pin Magnetic Connector Pogo Pin Charging Cable

The 5pin magnetic connector has a beautiful and simple structure. The jack-type pogo pin can make the pogo pin more stably soldered on the PCB circuit board or other equipment to ensure the performance of the product. According to the work requirements of customers or different products, the jack pin The bottom style of the device can be designed to be upright or bent 90°, which is the choice for small household appliances such as desk lamps.

Custom 5 Pin Magnetic Charging Cable 4 Pin Wires With SR Stopper Electrical wire To Open End 5 Pin Cable. It has a Number of Pins: of 5 and the Magnetic Force: of≥500gf Voltage Rating: of 5~24 VDC Current Rating: of 5A  Plastic Housing: PA66+30% GF.

AWG: AWG30/AWG28/AWG26/As requests

Magnet: NdFeB

Spring: Stainless steel SUS304/SWP

Needle: Brass C2700 / C3604

Insulation Resistance: 100MΩ at 100VDC

Gold Plated: 3～30μ

Contact Impedance: Dynamics≤30MΩ

RoHS: Compliant

Customizable: Yes

Package: Tube, Carton box

Since the magnetic head can be replaced with TypeC, Lightning, and MricoUSB, it is suitable for most digital devices such as mobile phones and tablets.

The magnetic head and the wire of the magnetic attraction wire are not hard-connected, and the probability of breaking itself is much smaller than that of ordinary wires. The wire is made of nylon braid, the wire end is reinforced, and the firmness is stronger than similar products.

The magnetic data cable supports up to 3A current charging, which is no different from ordinary data cables. We perform fast charging for a mobile phone that supports high current fast charging. The mobile phone has a low battery and ensures that fast charging is turned on when charging.

The shape of the magnetic pogo pin connector can be flexibly changed according to the work requirements of the product and the customized needs of customers, so as to achieve the needs of the product to energize and conduct electricity or transmit signals.

The company designs and develops:

1. More than 1600 customized high-current pogo pin connector products (2A-20A)

2. More than 300 customized charging pogo pin connectors (2pin-30pin)

3. Self-developed 1.27Pitch 2-40pins standard product

4. Independent research and development of 2.54Pitch 2.5mm high 2-40pin standard product, plastic height 1.27mm

5. Independent research and development of 2.54Pitch 2-128pin male and female standard products (4.5mm-15mm) structure is divided into SMT/DIP/Right Angle/Solder Cup

FAQ

Q: Are Samples Available?Any charges?

        Yes, samples in stock are available, free for real samples, but freight costs. New Designs need custom material costs. Micro USB 5 Pin Cable 4 Pin Wires With SR Stopper Electrical Micro USB To Open End 5 Pin Cable

Q: How can we get a quote?

         Please offer the specification of the product, such as material, connectors, wires, color, quantity, etc. Data Sync 5Pin Cable Custom Micro 5 Pin Cable 4 Pin Wires With SR Stopper Electrical Micro USB To Open End 5 Pin Cable

Q: Can you help with the design?

         New designs, Custom made, are available, and our engineers with help with all technics.

Custom USB 5 Pin Cable 4 Pin Wires With SR Stopper Electrical Micro USB To Open End 5 Pin Cable

Q: What's the payment term?

        Accept T/T, Western Union, L/C, Paypal & Cash, etc.

Q: May I have a new sample made with my design for confirmation?

         Yes. We can do the high-quality sample the same as your design for confirmation.

Q: What about the lead time?

         It depends on the products. Normally 10 to 15 workdays after confirmation of the design file and remittance.

Q: What shipping method can I choose?

         DHL, UPS, TNT, FEDEX, BY AIR, BY SEA, etc.

Q: Do you have MOQ?

         Yes. The MOQ depends on the specifications of the type you want.
