Multifunctional Magnetic Charging Pogo Pin Cable

Multifunctional Magnetic Charging Pogo Pin Cable

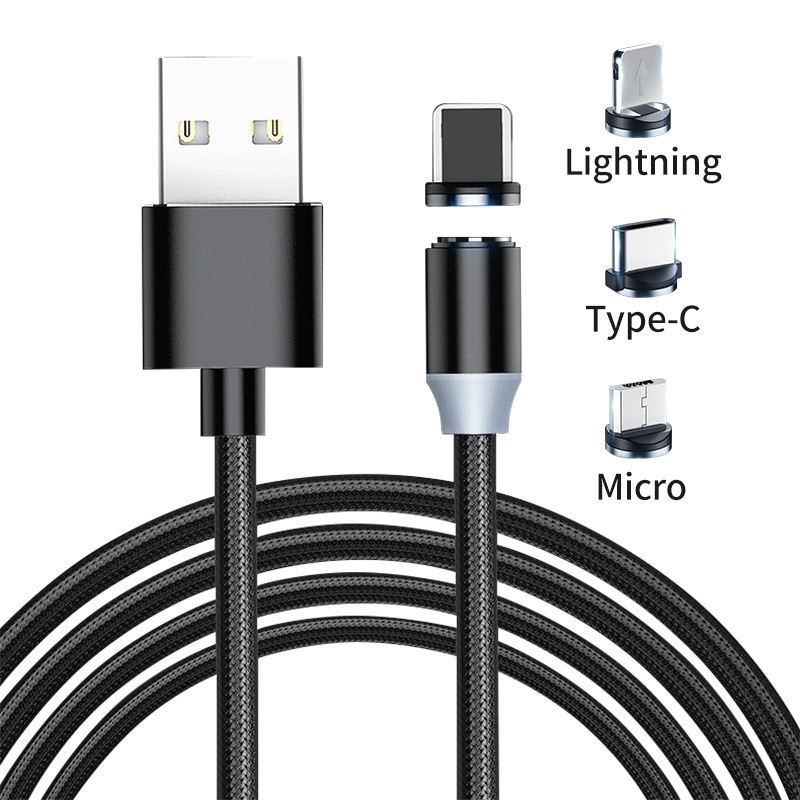

This flat headband data transmission magnetic cable is 3A, flash charging, has a super high value, super easy to use.

Multifunctional Magnetic Charging Pogo Pin Cable

The magnetic suction power supply base is provided with a magnetic suction device, and the center is provided with a positive electrode charging connector, and the outer periphery of the positive electrode charging connector is provided with a negative electrode charging connector; the bottom end of the charging interface is provided with a magnetic suction charging base, and the magnetic suction charging base is provided with The second magnetic suction device is provided with a positive electrode charging connection point in the center, and a negative electrode charging connection point is provided on the periphery of the positive electrode charging connection point. Simple and convenient; it can be adapted to various types of charging interfaces, and the charging interface can be replaced at any time, and the entire data cable will not be replaced due to different types of mobile phone charging interfaces or the loss of the charging interface of the data cable itself, which saves the user's cost of use, and Make the user experience better.

Multifunctional Magnetic Charging Pogo Pin Cable

The magnetic absorption and nanometer data line includes a data line body, a data interface, and a USB interface respectively disposed at both ends of the data line body, one end of the data line body close to the data interface is fixedly installed with a first magnetic ring, and one end of the data line body close to the USB interface is fixed A second magnetic ring is installed, the rear end of the USB interface is fixedly installed with a third magnetic ring, the data cable body is provided with at least two fourth magnetic rings arranged at intervals, and the fourth magnetic ring is connected to the first magnetic ring and the second magnetic ring. Spaces are arranged between the rings, and the fourth magnetic ring is provided with positioning rings along both ends of the data cable body, the positioning rings are fixedly arranged on the data cable body, and the diameter of the fourth magnetic ring is larger than the diameter of the data cable body. The new type is simple in structure, easy to use, and easy to store the data cable. When installing the magnet, there is no need to fix the corresponding magnetic pole of the magnet. The processing and production efficiency is high, the product quality is improved, and the generation of defective products is reduced.

Multifunctional Magnetic Charging Pogo Pin Cable

The magnetic data cable, comprising a magnetic plug end and a dust-proof plug, the magnetic plug end comprising an aluminum shell, a terminal connector wrapped in the aluminum shell, and electrically connected to the terminal connector The PCBA board and the connecting line electrically connected to the PCBA board are characterized in that: the terminal connector includes a colloidal structure and a pogo pin, the pogo pin includes a base, and one end of the base extends out of Ten tentacles, springs are respectively provided on the ten tentacles, one end of the spring is electrically connected with ten terminals, the ten terminals are electrically connected to the PCBA board, and the terminal connector is also provided with Pins, the PCBA board and the terminal connector are electrically connected through the pins, the colloidal structure is provided with through-type card holes, the terminals correspond to them one by one, and the card is inserted on the colloidal structure, so A magnet is also attached to the terminal connector by glue, and the dust plug includes a metal shell, a PCB board located in the metal shell, and a contact, and the contact is electrically connected to the PCB board.

Multifunctional Magnetic Charging Pogo Pin Cable Or you can use a single-pin circular adsorption magnetic rotary connector. The new model adopts the principle of magnetic suction, and by setting the dust plug and the matching magnetic suction plug, the data cable is more convenient to connect.
